<H6>How to set Auto Power On+External switch button extension

Please enter banners and links.

概述:

开机自启动:也称为Auto Power On,是指工控主板或工控计算机只要打开电源,工控主板或工控计算机就可以自动开机, 进入系统开始工作。

  为什么工业主板或工业计算机具有此功能?

  因为工业控制母板或工业控制计算机通常在无人值守的地方使用,例如自动售货机,快递柜,广告机,生产线,加工设备,交通控制,安全监控,医疗保健,银行设备等。 ,没有专人进行维护和防护。 通常,电源开关用于控制设备的打开或关闭。 此时,可以使用工业计算机的开机自启动优势。 只要设备上电,工业控制主板或工业控制计算机就可以自动检测到电源,并自动打开并开始工作。

适用机型:H6全系

下面我们来介绍设置方法;

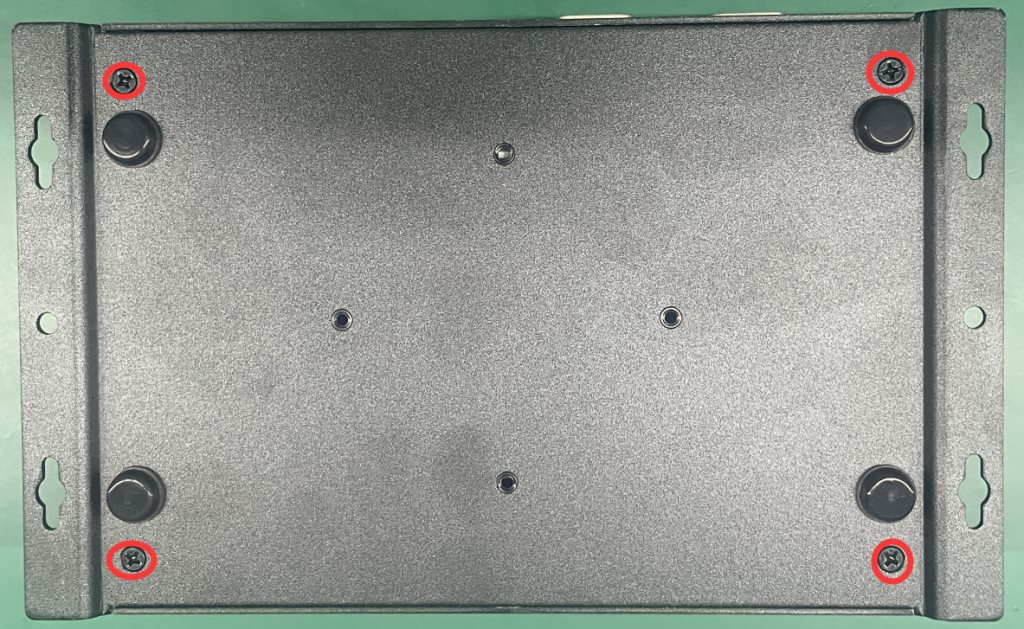

  • 1、使用螺丝刀 将底壳4颗固定螺丝取下,拆开底壳即可看到主板。

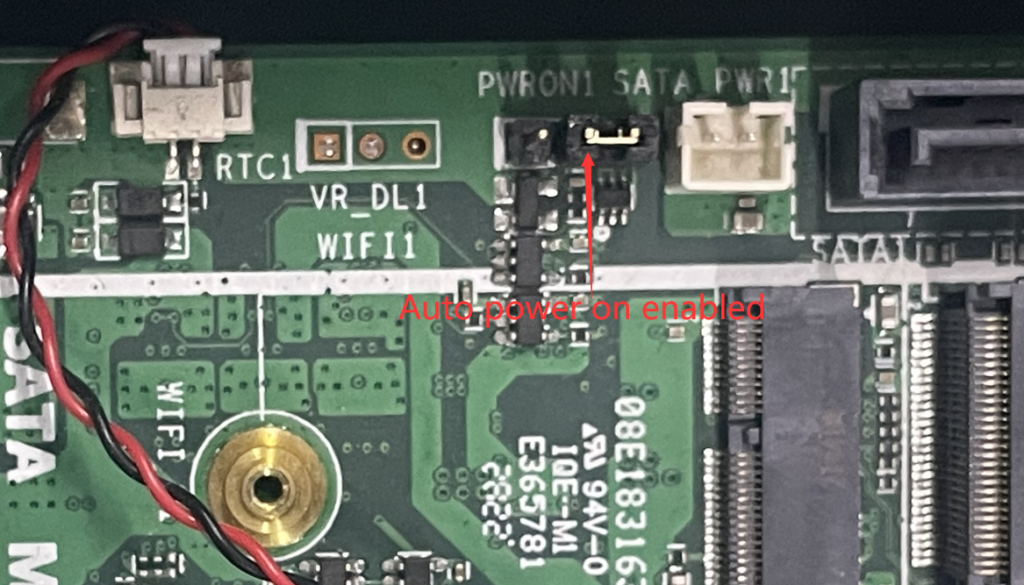

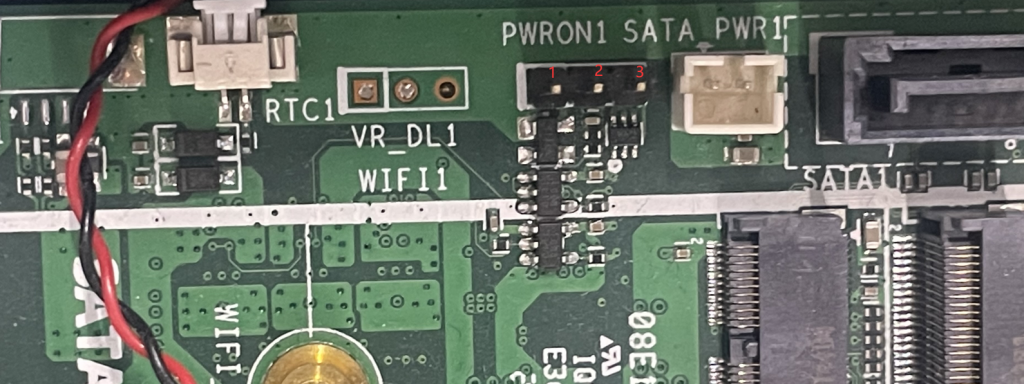

  • 2、在主板上找到PWRON1针脚,该针脚上预插了1个跳帽,出厂默认接在pin1和pin2针脚,插在pin1和pin2针脚时未启用通电自启功能。将该跳帽移动到pin2和pin3针脚时,即可实现通电自启。

外部开关按钮扩展

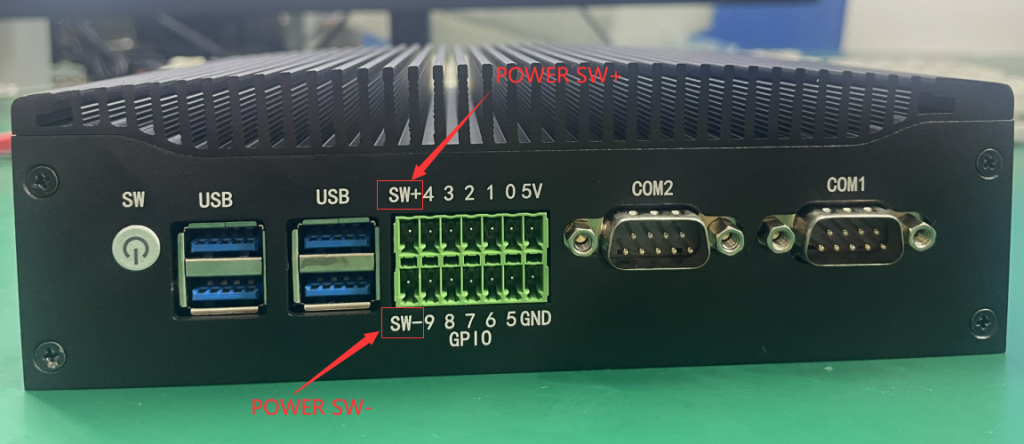

  • 3、H6全系带GPIO端口,机箱GPIO面板上标记有SW+和SW-,SW+是POWER SW+的缩写,SW-是POWER SW-的缩写。

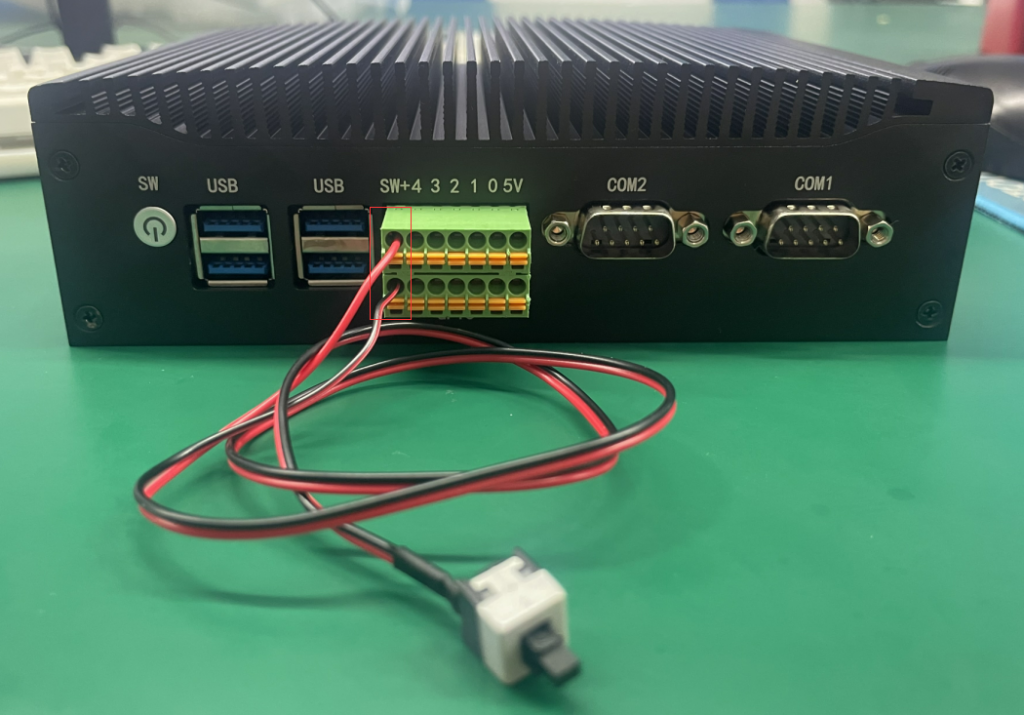

  • 4、将GPIO连接端子插入GPIO端口,将开关按钮 正极卡到SW+,将负极卡到SW- 即可。

作者: minipc
