M2-How to set Auto Power On+Common Function Configuration

Please enter banners and links.

  • 一、Auto Power On
  • 适用M2私模款，BIOS版本：BOX IGD.27 X64
  • 1-1、按PC开关按钮后快速敲击键盘F2键进入BIOS Setup，依次选择Boot>将Auto Power on设置为Enabled 。
  • 1-2、设置完成后选择Save & Exit>Save Changes and Exit.
  • 二、开启FTPM2.0
  • 2-1、按PC开关按钮后快速敲击键盘F2键进入BIOS Setup，依次选择Trusted Computing>将Security Device Support 设置为Enable。设置完成后选择Save & Exit>Save Changes and Exit。
  • 2-2、重启后再次进入BIOS>Trusted Computing选项，确认是否开启成功，如下图所示为开启成功状态。
  • 三、禁用PXE启动（网络启动）
  • 概述：该BIOS中已默认开启UEFI PXE，当计算机中未安装硬盘、操作系统损坏或Boot启动项设置异常时 ，会通过UEFI PXE启动，导致无法进入硬盘中的操作系统。下图为进入PXE启动截图示意

进入PXE启动后无法进入操作系统，可按以下步骤逐一排查。

  • 3-1、按Ctrl+Alt+Delete键重启计算机，重启后快速敲击键盘F2键进入BIOS Setup依次选择Boot>将Boot option #1设置为 Hard Disk:Windows Boot Manager.

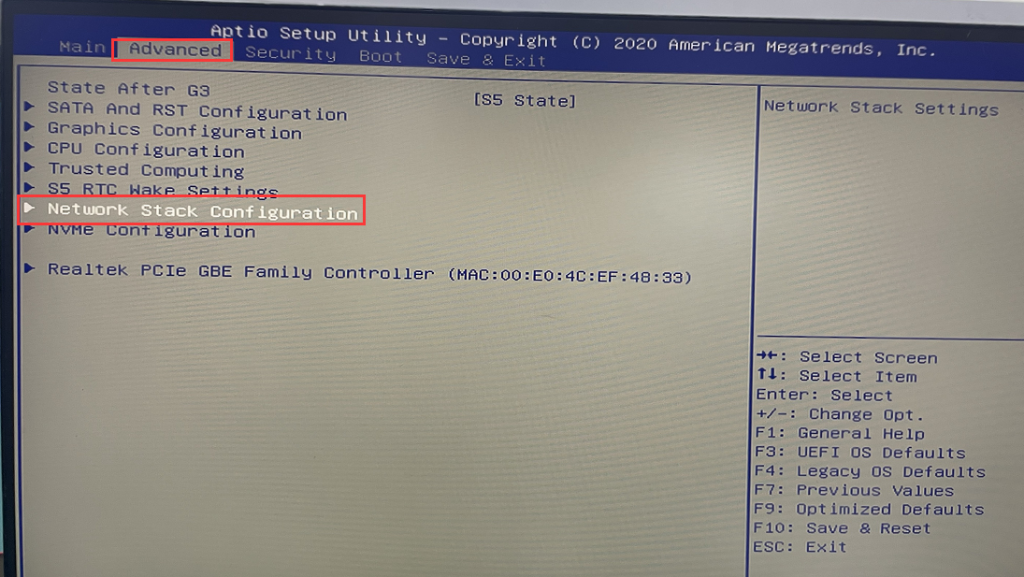

  • 3-2、选择Advanced>Network Stack configuration>将Network Stack设置为Disabled.
  • 3-3、设置完成后选择Save & Exit>Save Changes and Exit，或者按F10键保存并退出。

作者： minipc
