P16/H7(Generation 6 and above)Auto Power On

Please enter banners and links.

(适用P16\H6\H7-6th-7th-8th(I5-8260U 不适用)-10th)

  • 准备工作、工具
    • Phillips screwdriver PH2 *1
    • 操作前请先断电
  • 1、使用螺丝刀 将底壳4颗固定螺丝取下,拆开底壳即可看到主板。

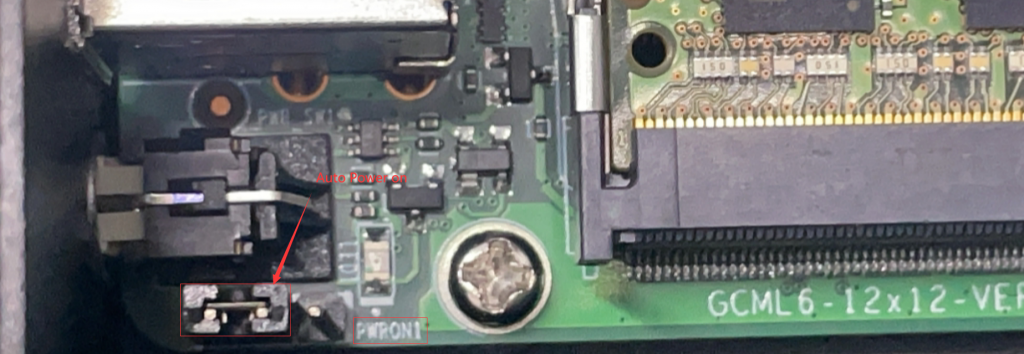

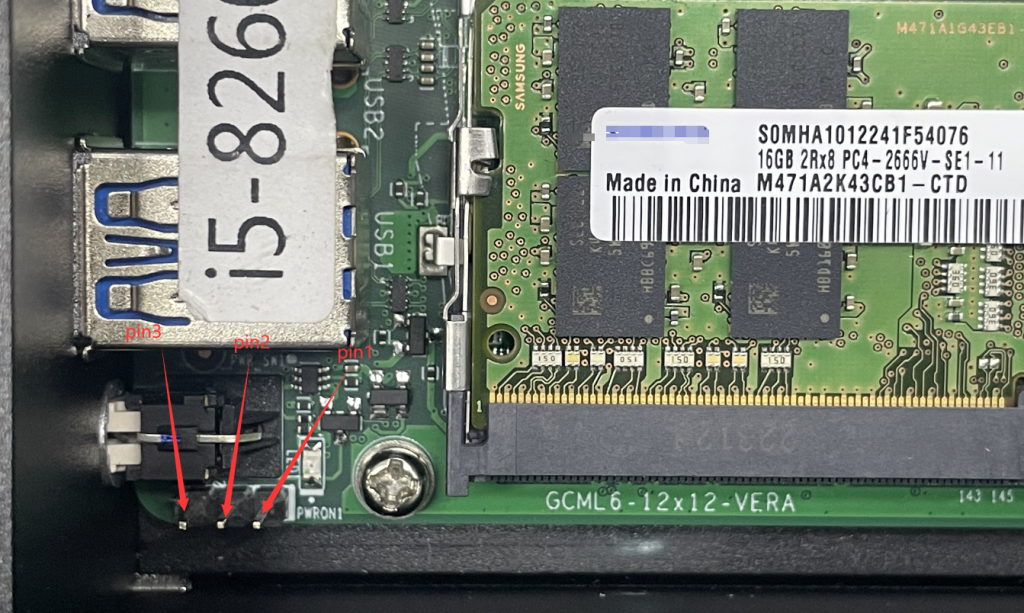

  • 2、在主板上找到PWRON1针脚,该针脚上预插了1个跳帽,出厂默认接在pin1和pin2针脚,插在pin1和pin2针脚时未启用通电自启功能。将该跳帽移动到pin2和pin3针脚时,即可实现通电自启。
